Description
For straight (90°) and miter (45° left) cross
cutting, ripping and bevel cutting at 45°
left and right, of wooden-based panels and
solid wood boards up to 3mt. For furniture
manufacturing and joinery.

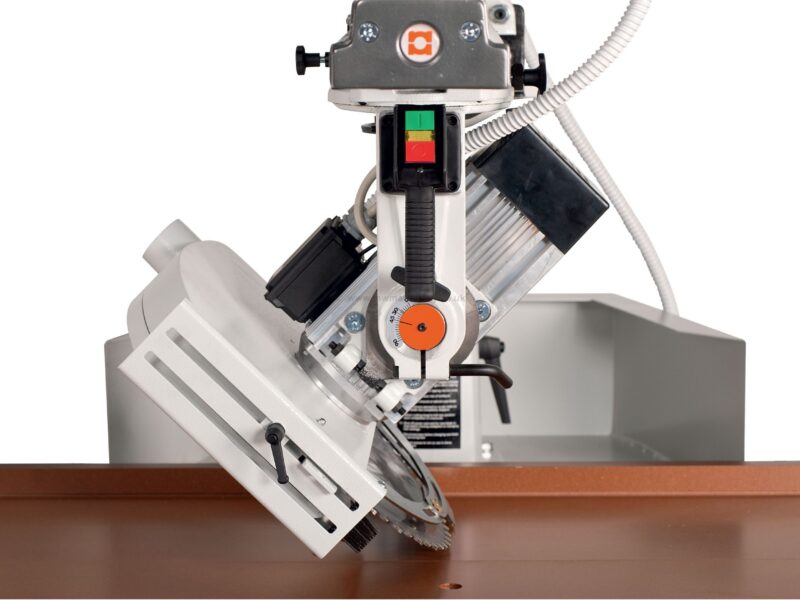

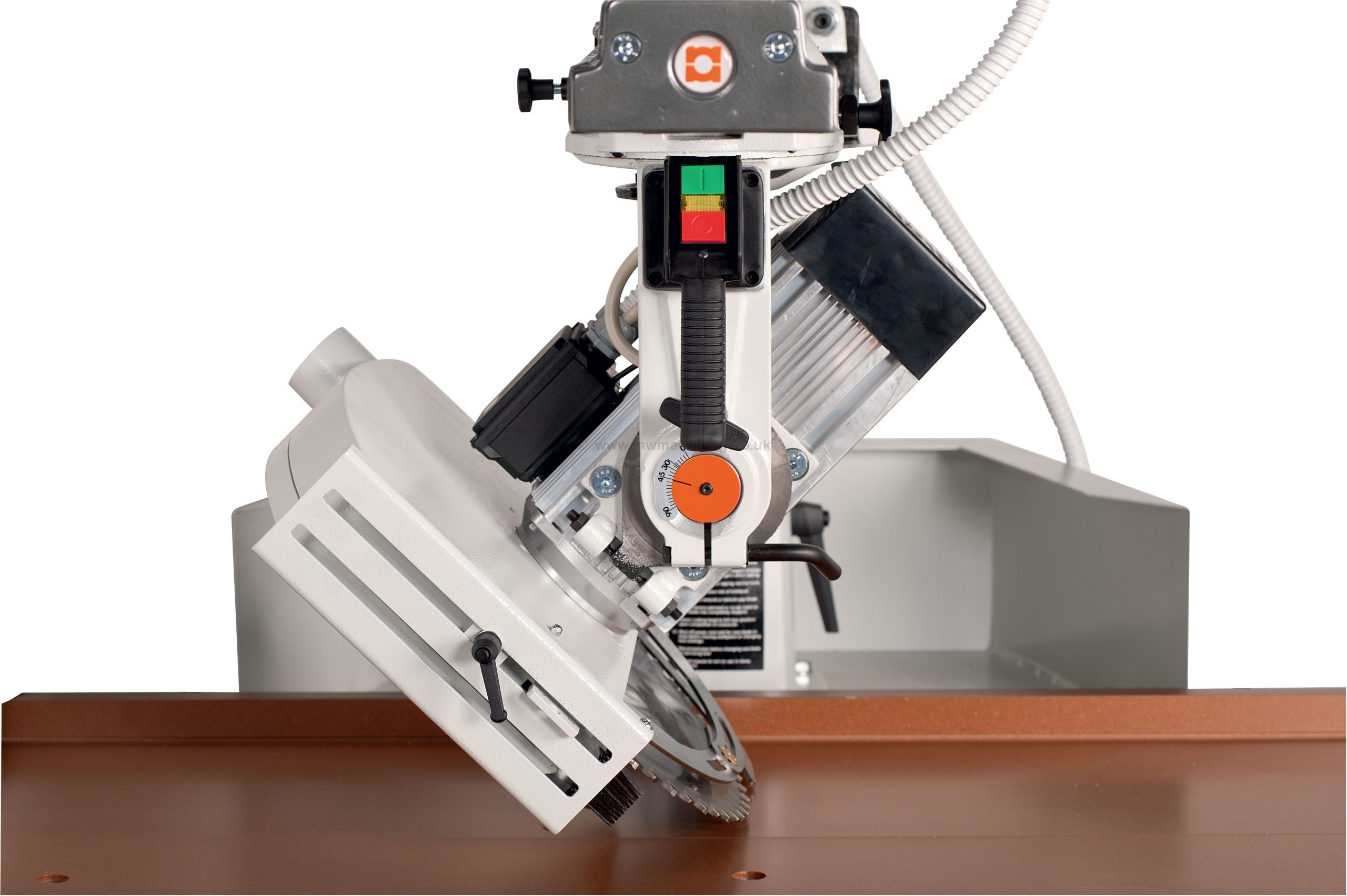

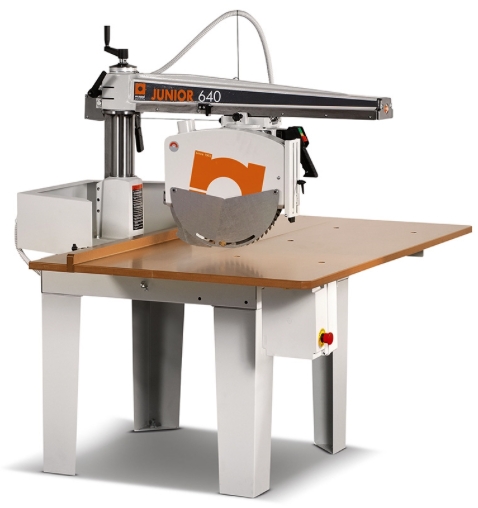

Maggi Junior 640 Cross Cut
Radial Arm Saw, Crosscut Saw - IN STOCK
£3,450.00
£4,140.00Inc VAT
Max. cutting height: 125 mm
Max. cutting width 545 x 20 h mm
Min..cutting width 450 x 125 h mm
Max.length of workpiece unlimited
Max. cutting width for ripping 0 – 860 mm
Cutting height at 45° 0 – 80 mm
Min. and Max. cutting width at 45° (right) 315 – 380 mm
Min. and Max. cutting width at 45° (left) 125 – 190 mm
Height of blade from working bench 0 – 45 mm
Blade diameter 400 mm
Blade bore diameter 30 mm
Motor HP / KW 4/3 RPM 2800
Working bench dimensions 15470x1025mm
Diameter of dust collection nozzle on blade guard 60 mm
Diameter of dust collection nozzle on rear hood 100 mm
Overall dimensions of full- assembled machine 1540x1375x1540 mm
