Name: SCM Profiset 60EP
SKU: 1139
Price: 41350.00 GBP
Availability: InStock

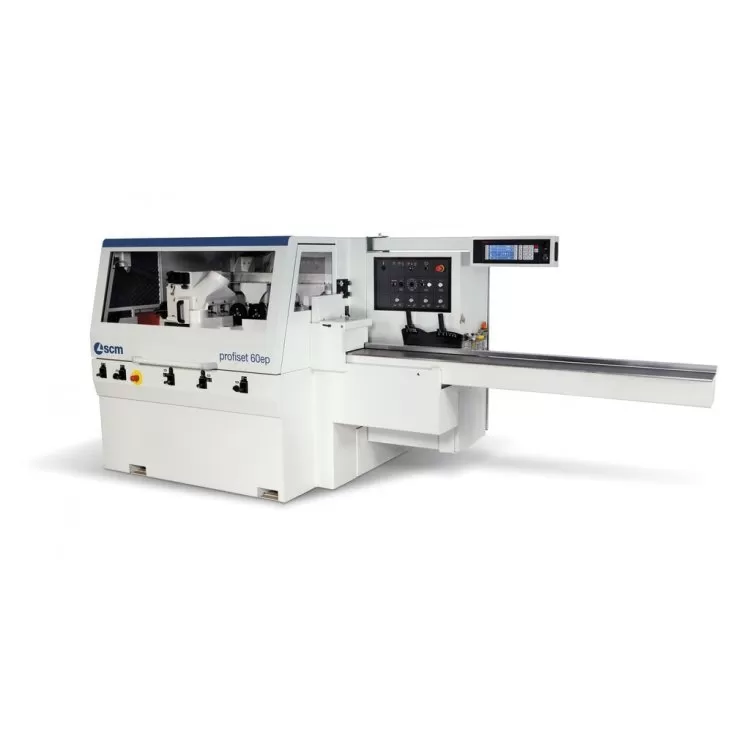

SCM Profiset 60EP

Planer Moulder

£41,350.00

£49,620.00Inc VAT

SCM Profiset EP Comp 5, C.E. norms, Automatic braking for motors.

Standard Spec

“EASY PLUS” electronic control from mobile control panel with 2 axes: – Automatic control of left vertical spindle and upper horizontal spindle positioning.
Feed speed selection.
7” LCD colour display; 16/9 resolution
Tools database
Programs database with visualisation of tools picture and position
5÷25 m/min variable feed speed by inverter
Pneumatic pressure for feed rollers
Top feed unit fitted in front of surface planer

Options as ordered by WMS.

Automatic star-delta start for motors
Increased motor power;
5,5 kW planer spindle (7,5 HP);
11 kW (15 HP) right/left vertical spindle
7,5 kW (10 HP) top horizontal spindle
5,5 kW (7,5 HP) bottom horizontal spindle
Kit to allow Moulding on Top Head
Second flanged feed roller opposite left vertical spindle.
Feed unit – Composition 5 placed after top horizontal spindle
Vertical pressure with idle roller placed in front of right spindle
Vertical pressure with idle roller placed in front of left spindle
Kit of supplementary flanged feed rollers in front of left vertical spindle It includes: – 2 steel feed rollers, 20 mm wide – 2 distance rings, 40 mm wide
Automatic work table lubrication
2500mm infeed worktable
Supplementary worktable with rexilon inserts – comp. 5 opposite last bottom horizontal spindle for profiling or splitting with sawblades diameter more than 15 mm depth – 180mm max. tool diam. – 40mm profiling capacity

Enquire About this Product

Description

WMS had this machine made to order.

This machine can profile mould on both side heads, the top head and the second bottom head, a composition that lends itself to customers looking for a machine that is ideal for both PAR and Profile Moulding.

The Profiset 60 EP is a throughfeed planer/moulder with easy plus control that automatically moves the top horizontal and left vertical spindle in to there finished height and width positions. The machine comes with optional automatic table lube system and a powerful feed system that can be controlled from the easy plus control unit with speeds of 5-25 m/min. The easy plus 7″ inch display holds a database for both tool and programs to allow for quick set up of different jobs. Pnuematic Pressure for feed rollers and excludable top feed unit fitted in front of bottom horizontal spindle.
