Optional Features | Standard Kit, Single Phase Motor, 610mm Crosscut Table, 1200mm Panel Sizing Table |
---|

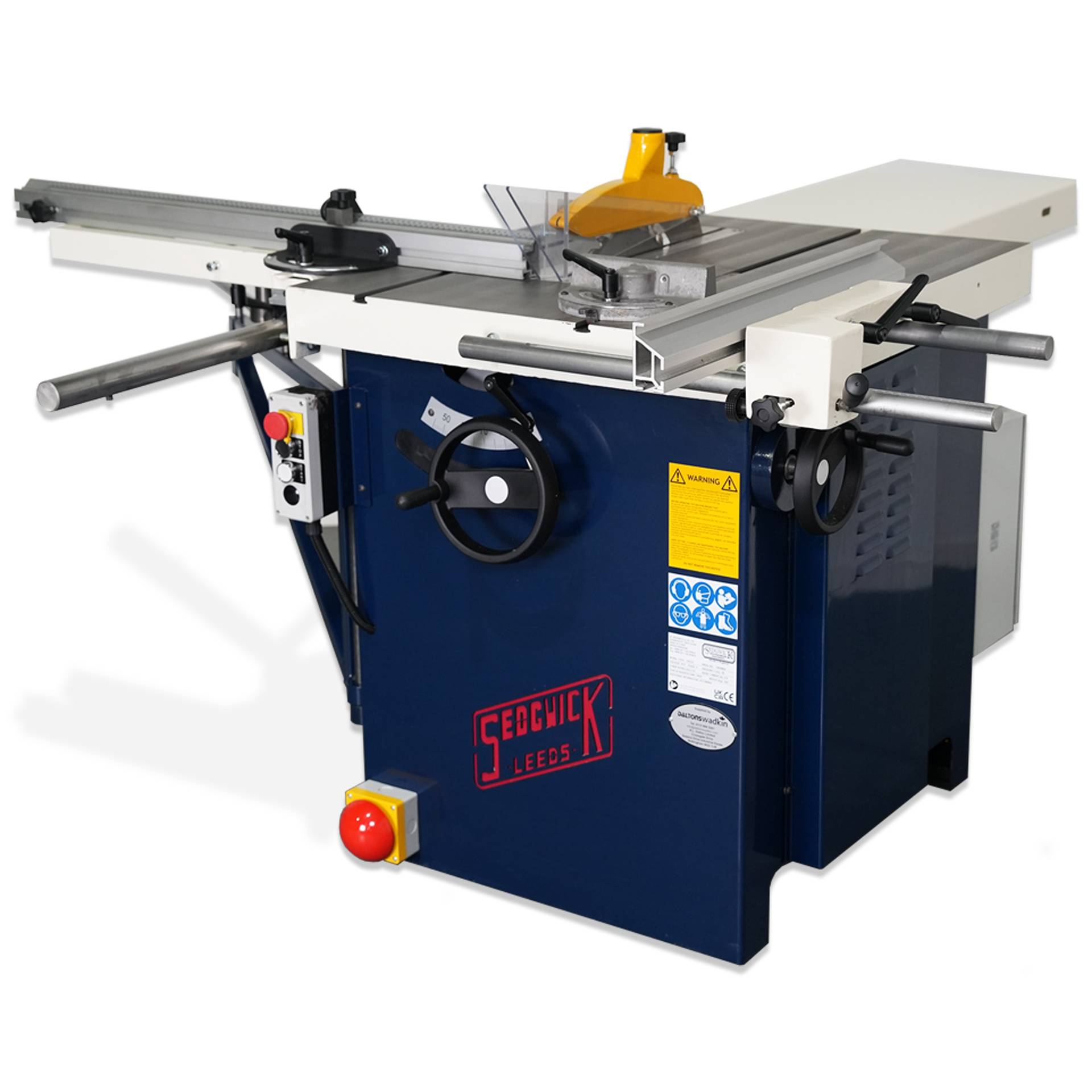

New Sedgwick TA315 Table Saw
Blade diameter, max. – 315 mm
Cutting depth, max. – 105 mm
Blade tilt – 0 – 45°
Blade speed – 3700 rpm
Height adjustment – Manual with hand wheel
Tilt adjustment – Manual with hand wheel
Table size – 800 x 750 mm
Rip fence capacity – 610 mm
Rip fence adjustment – Manual
Extraction outlet(s) – 1 x 150 mm, 1 x 50 mm
Motor – 3 kW (4 HP)
Power – Single/3 Phase
Optional Features | Standard Kit, Single Phase Motor, 610mm Crosscut Table, 1200mm Panel Sizing Table |
---|
